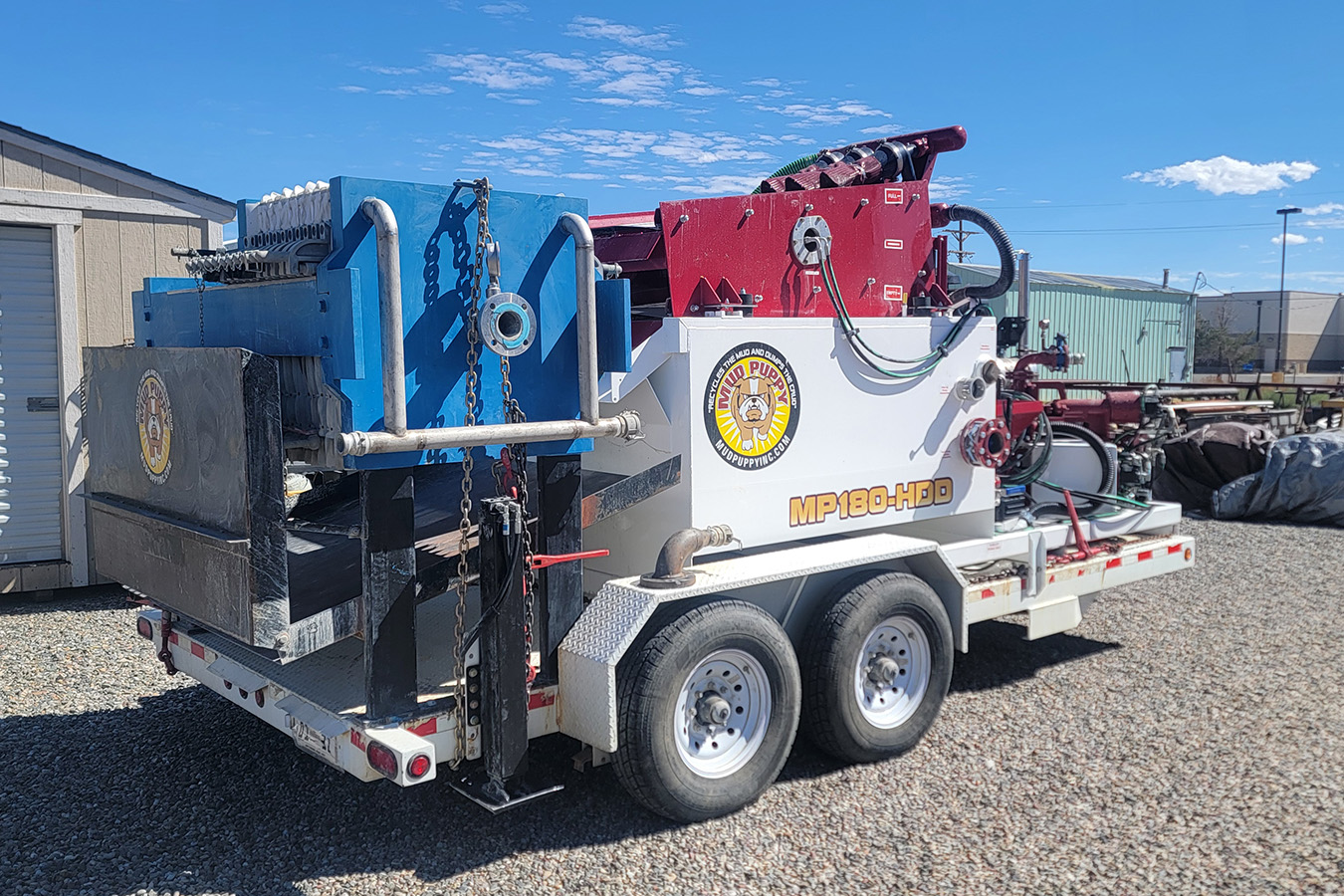

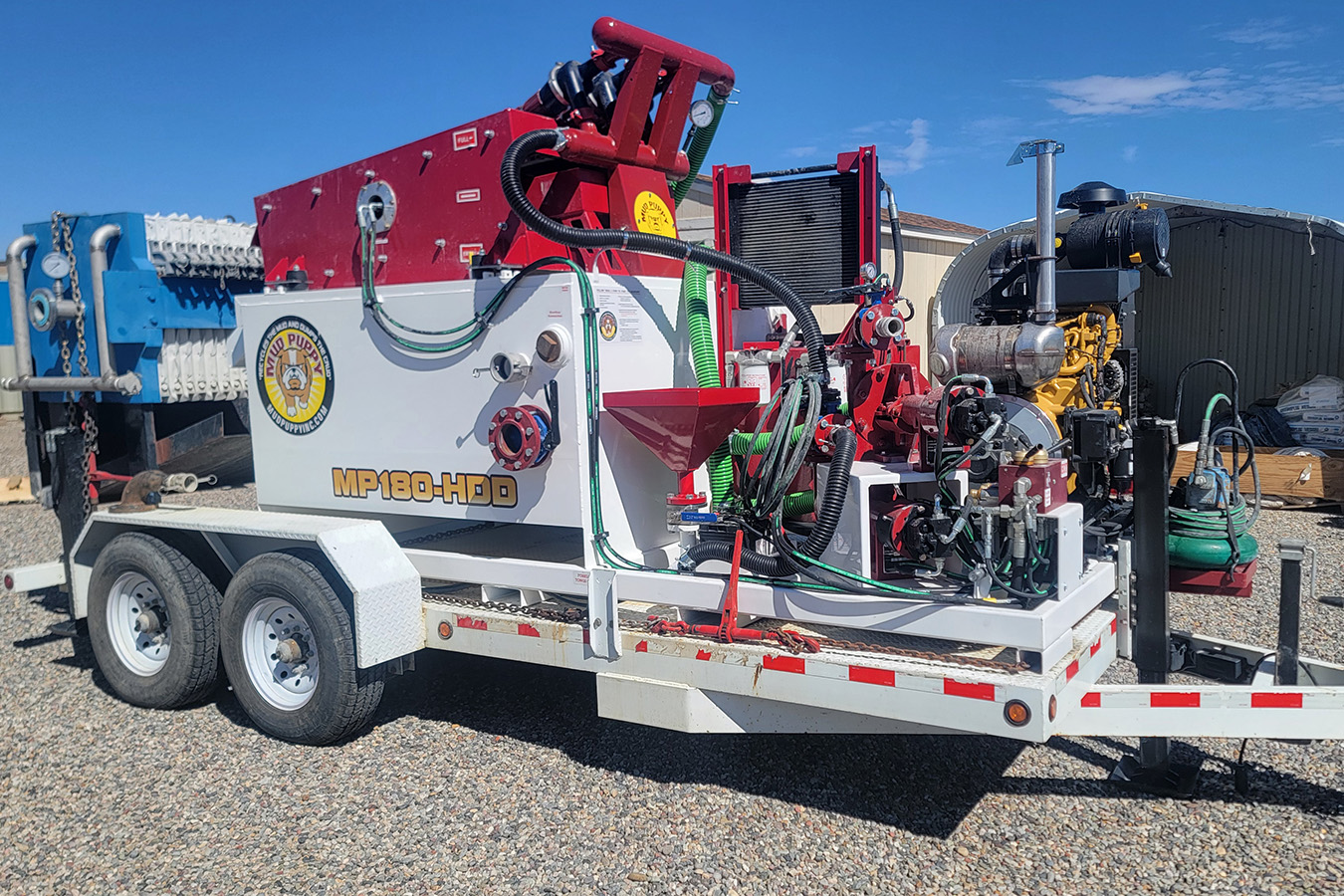

Mud Puppy 180-HDD Mud Filter Recycler

Features
Flow Capacity
350 gallons per minute
Tank Capacity
600 gallons
Engine

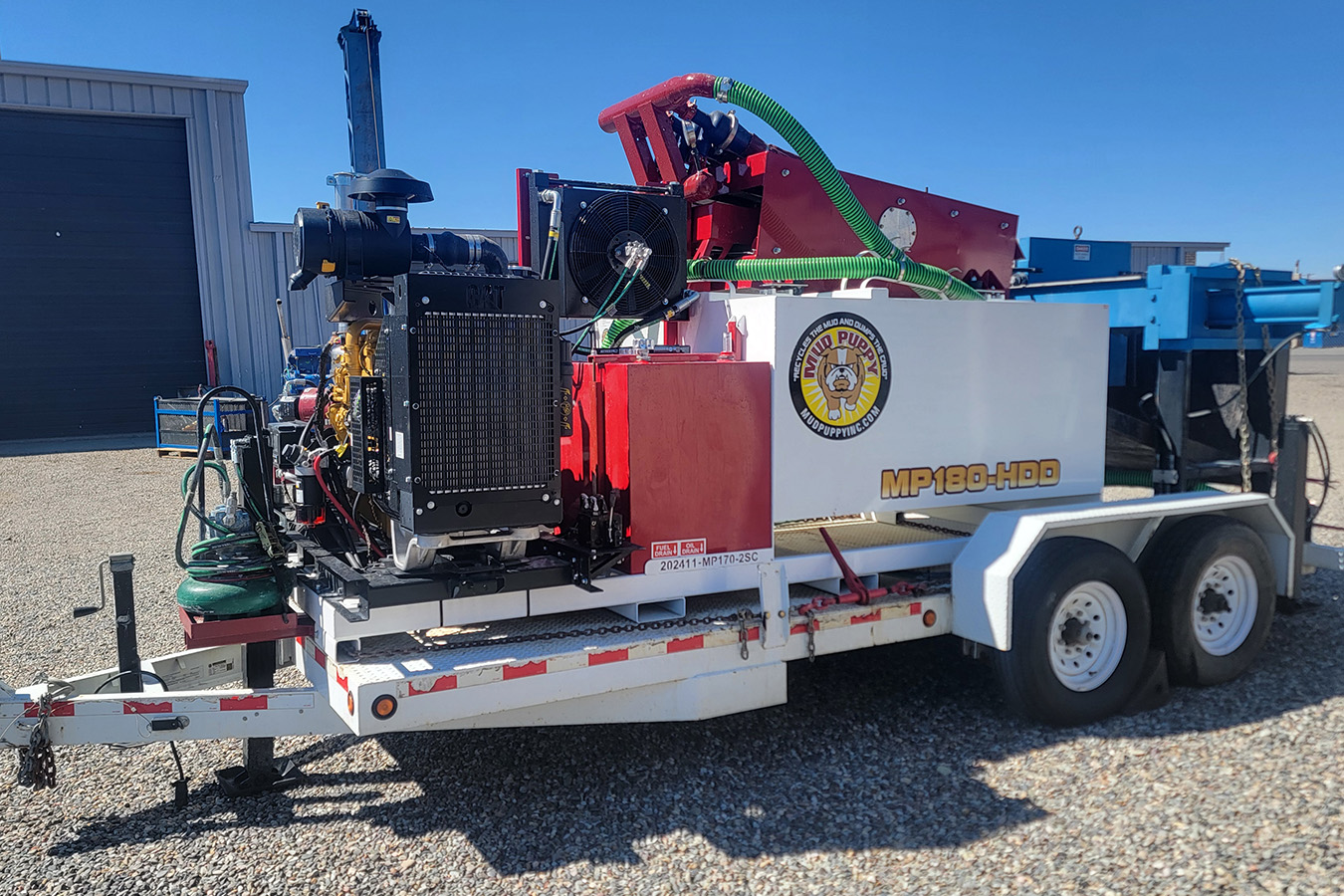

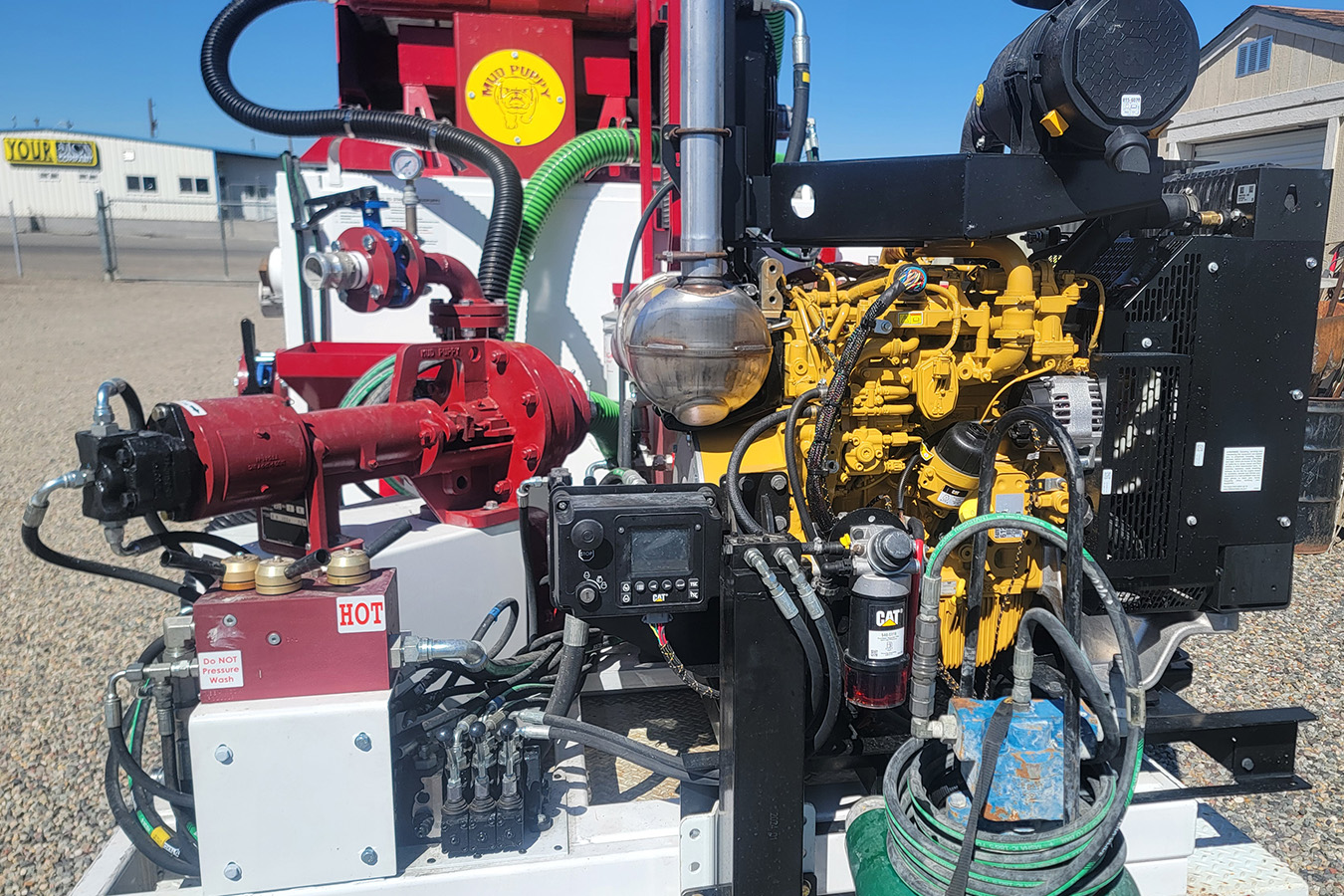

Tier 4 Caterpillar 2.8 cylinder diesel engine (74 hp)
Advantages
  • 3’ x 5’ double shaker screen: bottom 10 mesh / top 100 mesh
  • Three 5” desander cones

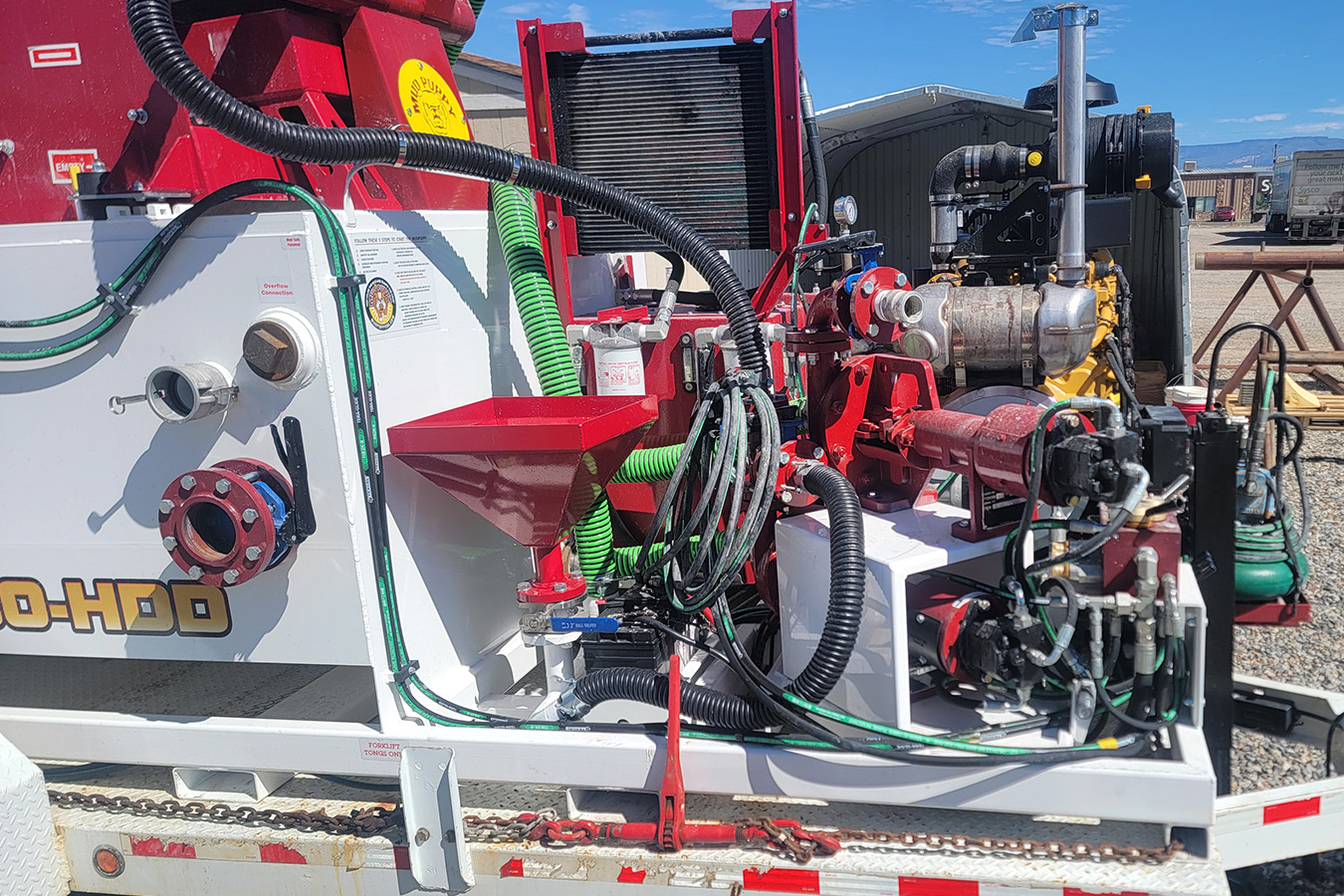

  • 2” x 3” 118 centrifugal mud pump set at 30 - 35 PSI
  • Additional 2” x 3” 118 centrifugal mud pump
  • 9” patented Tetra Greene Sand Guzzler pick up pump
  • Complete hydraulic system
  • Hydraulic outriggers



Mud Pupppy



Support Equipment
  • Mud Puppy
  • Mud Puppy
  • Mud Puppy
  • Mud Puppy
  • Mud Puppy
  • Mud Puppy
  • Mud Puppy
  • Mud Puppy
  • Mud Puppy
  • Mud Puppy

​​​​​​Mud Puppy 180-HDD Mud Recycler

Mud Puppy recyclers work by filtering the drilling fluid and cuttings along the drill pipe, mud pit or mud pan and separates the rock, sand, clay and various unwanted fragments. After the initial filtration, smaller cuttings are further filtered through the tank and are pulled through the sand trap. From there, the cuttings are run through the desanding cones and processed on top of a finer screen located on the shaker bed. Finally, the mud is purified and now suitable to be sent back to the drilling rig.
