VersaDrill KmN1.4sm Diamond Core Drill
Features
Diesel Emissions
CAT Tier 4/stage IV final engine
Pull Capacity
26,000 pounds
Push Capacity
26,000 pounds
Angle Hole
Vertical to 45 degrees
Wireline Cable Length
6,890 feet
Advantages
- Production core drill
- B, N, H, and P core sizes
- Tracked for rough and sloping terrain
- Designed for low ground pressure
- Remote control tramming

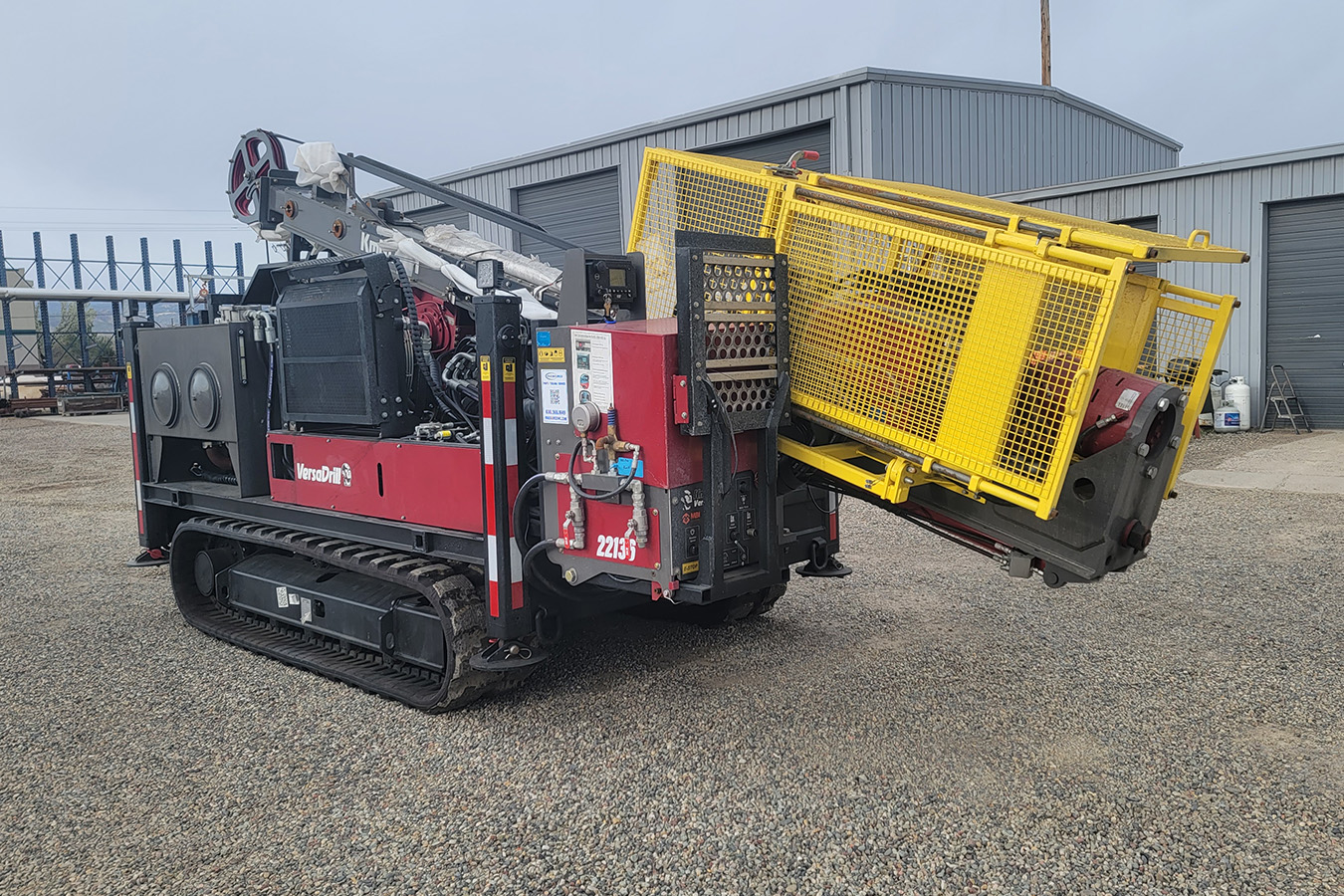

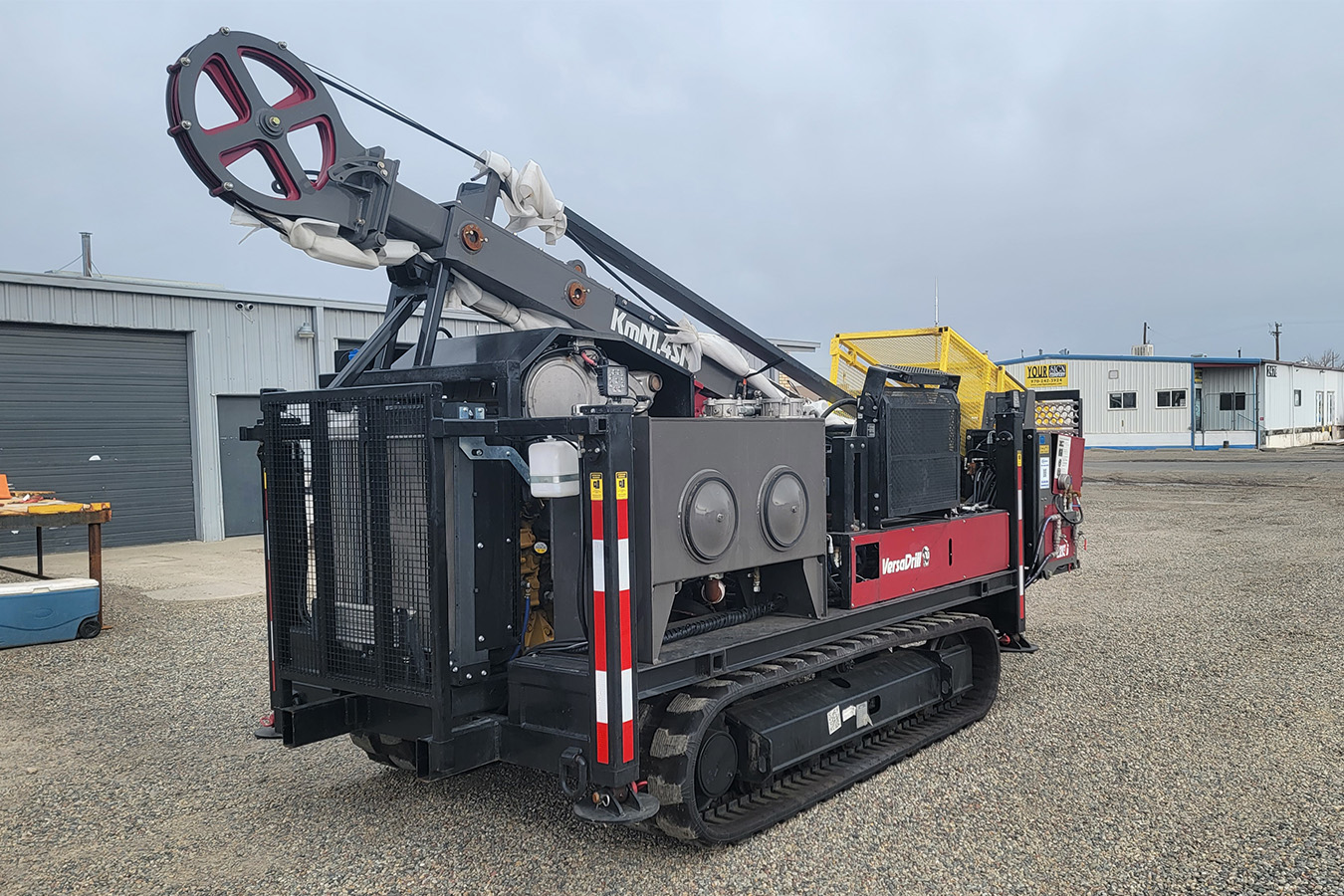

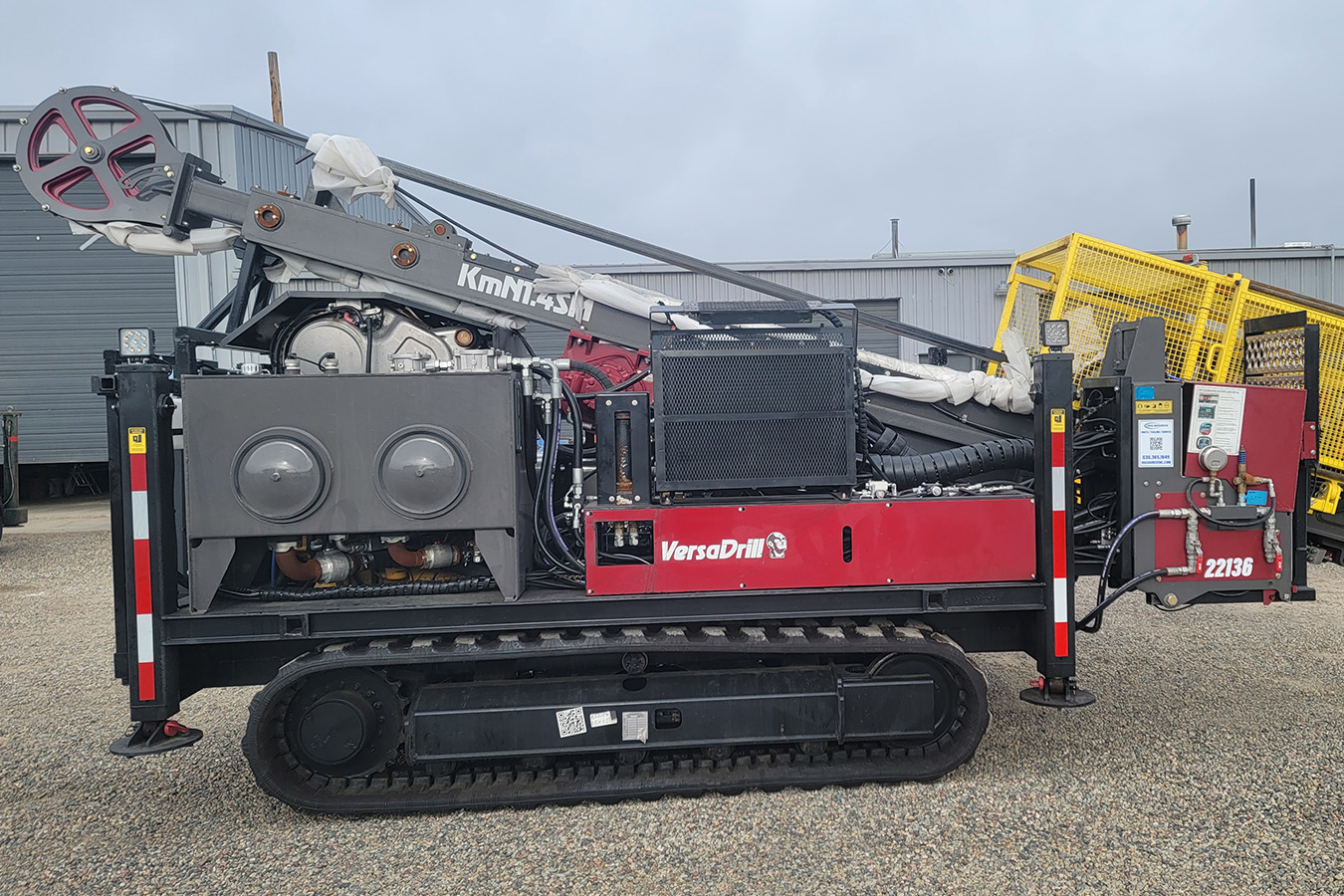

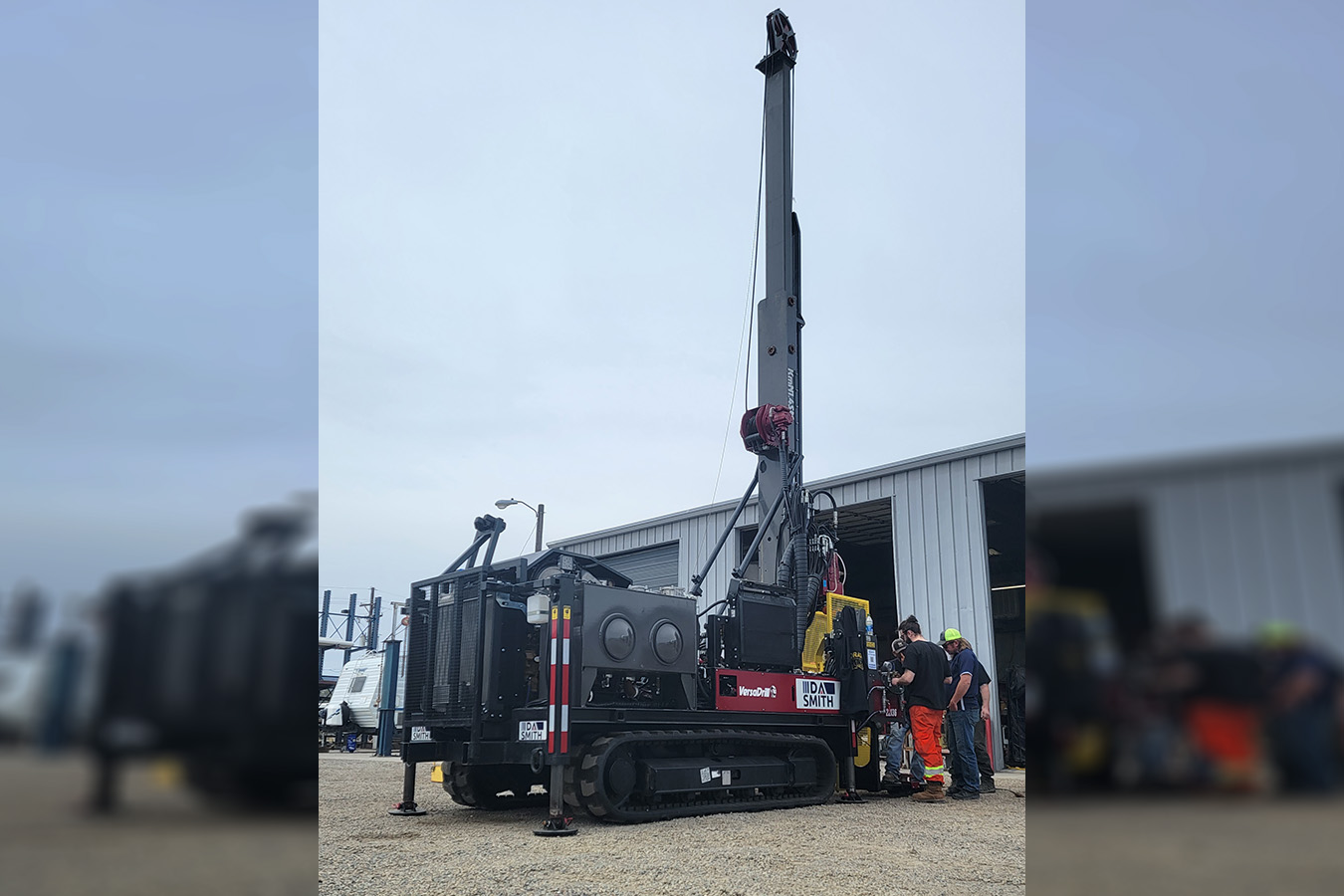

VersaDrill KMN 1.4SM Drill on Cat 308 Steel Tracks
- Hydraulic module with pressure tank and mobile control
- Drill head with A-P chuck
- Drill head variable speed hydraulic Motor 160cc
- Transmission gear box 4 speed funk transmission, manually shift
- Rod holder 124mm
- Feed frame base 90’ with legs
- Main hoist with tensioner
- Wireline hoist 1400m with automatic cable guide
- Surface feed frame (11 ft) stroke
- CAT Tier 4/ state IV final engine
- Safety upgrade, auto certification and light system
- Rotation guard
- 50-gallon fuel tank
- Wireline cable 3/16 wedge cable (5,000 ft)
- NQ, HQ and PQ jaw sets
- NQ, HQ, and PQ alignment rod bushings
- Hydraulic mud mixer
- Bean AM435 hydraulic water pump
- CAT 308 steel track undercarriage
Drilling Depth Capacity (vertical hole)
- B 6,230 ft
- N 4,600 ft
- H 2,625 ft
- P 1,610 ft
VersaDrill KmN1.4sm Spec Sheet
